PRODUCTS
DARSHAN is a market leader in manufacture of
Wire Stitching Machinery in the Indian Packaging & Printing Industry.
BOX MAKING MACHINERY

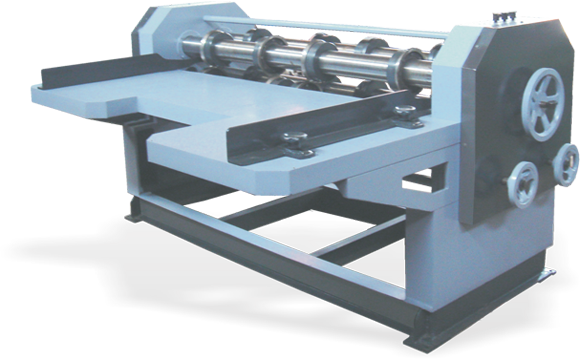

Four Bar Rotary Slitting & Creasing machine
Characteristics
- Creases & slits (cuts) corrugated sheets, vertically & horizontally to the required length & width.
- Machine fitted with easily adjustable Creasing Dies & Cutters in two halves.
- Two gauges (left/ right) fitted on the feeding table to use both ends.
- Heavy duty machine with 4 shafts fitted on ball bearings for smooth running.
- Fitted with 4 sets creaser heads, 4 sets trimming heads with manual shifting of heads.
- Efficiently designed lubrication system.

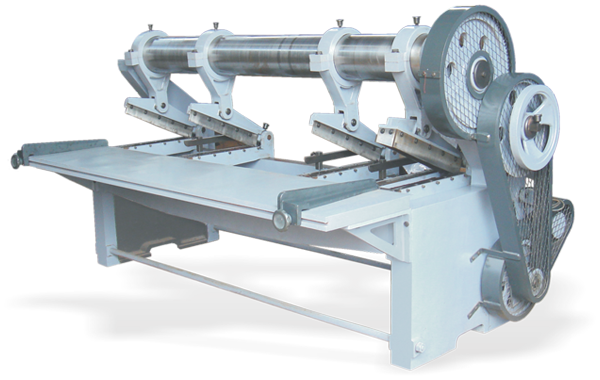

Eccentric Slotter
Characteristics
- Heavy duty machine provided with 3 slotting heads & 1 corner head (L shaped cutting) The heads can be adjusted accurately to the required size.
- Slot depth- 18” and Speed- approx. 25-30 strokes per minute.
- Gagues are provided on the table and on the knives for accurate depth.
- Efficiently designed lubrication system fitted in the machine.

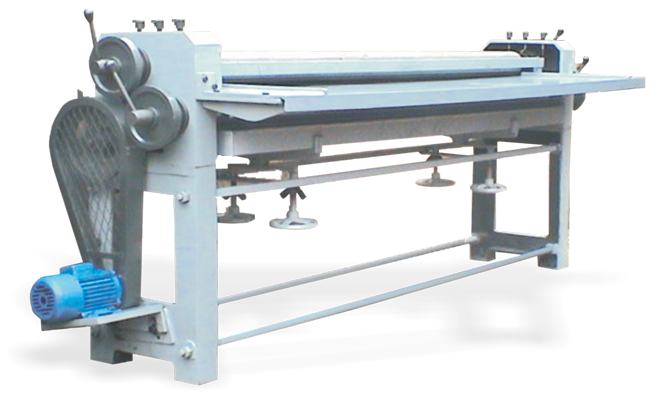

Corrugating Sheet Glueing Machine
Characteristics
- Heavy duty machine, easy to operate.
- Fitted with adjustable glue tamk, Pastes (glues) corrugated sheets of different ply.
- Top pressure roller adjustment & doctor roll adjustment controlled manually.

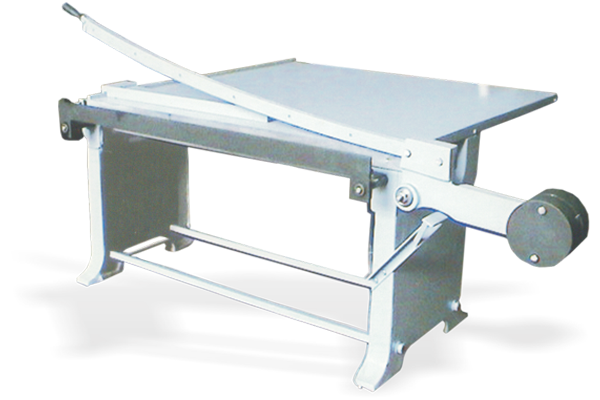

Board Cutter
Characteristics
- Manually operated machine to cut corrugated board, cardboard & paper sheets.
- Gauges are provided for accurate feeding & cutting.
- Heavy duty machine with foot operated pressure clamp.

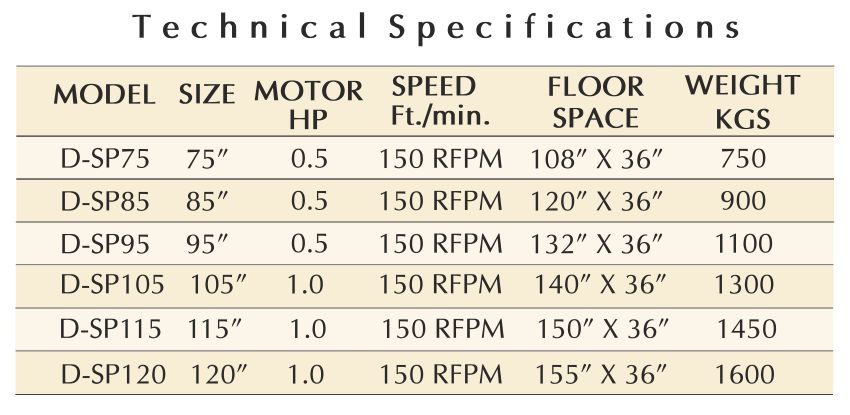

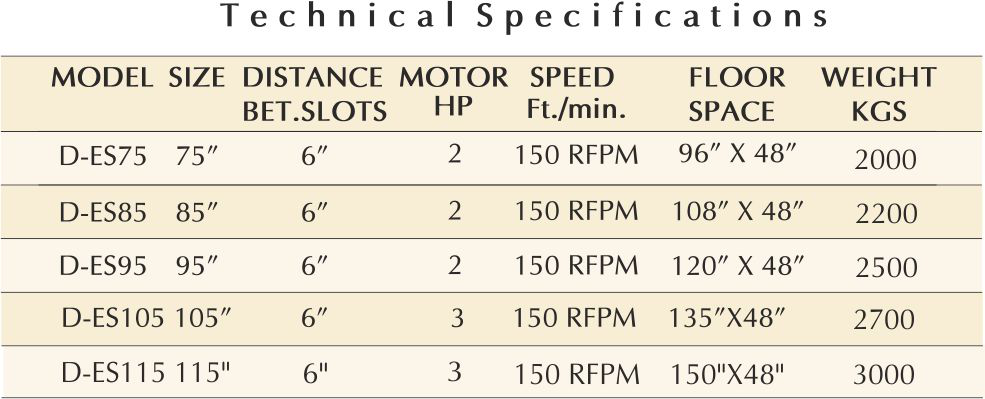

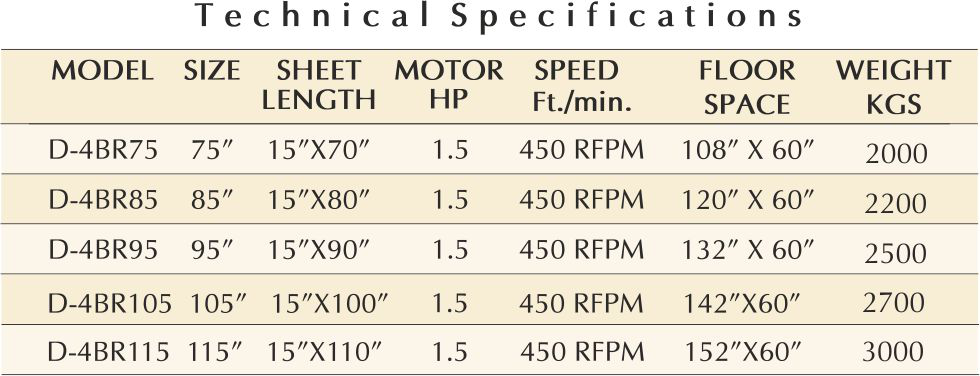

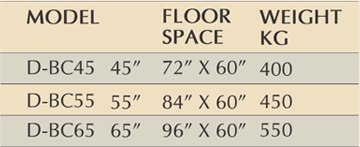

Technical Statistics:
